Precision Single-Slot Cutting Machine for Cemented Carbide Rods

Overview

Dingfeng's patented Single-Slot processing. Designed for high-precision cutting operations, this equipment family includes three distinct models: DFQ-08NC, DFQ-12Q-30NC. These machines specialize in processing rods ranging from Ø3mm to Ø32mm in diameter, with configurations allowing simultaneous cutting of 1, 2, or 4 rods. Engineered with precision and efficiency as core principles, our cutting solutions deliver ±0.05mm accuracy – a critical tolerance for demanding industrial applications.

Model-Specific Capabilities

Each model is optimized for specific operationalDFQ-08NC Model**:
Processes 4 rods simultaneously
Max Cutting Diameter: Ø8mm
Processing Range: Ø3–Ø8mm
Ideal for high-volume production of small-diameter components

• DFQ-12NC Model:
  Processes 2 rods simultaneously
  Max Cutting Diameter: Ø16mm
  Processing Range: Ø3–Ø16mm
  Balanced solution for medium-diameter applications

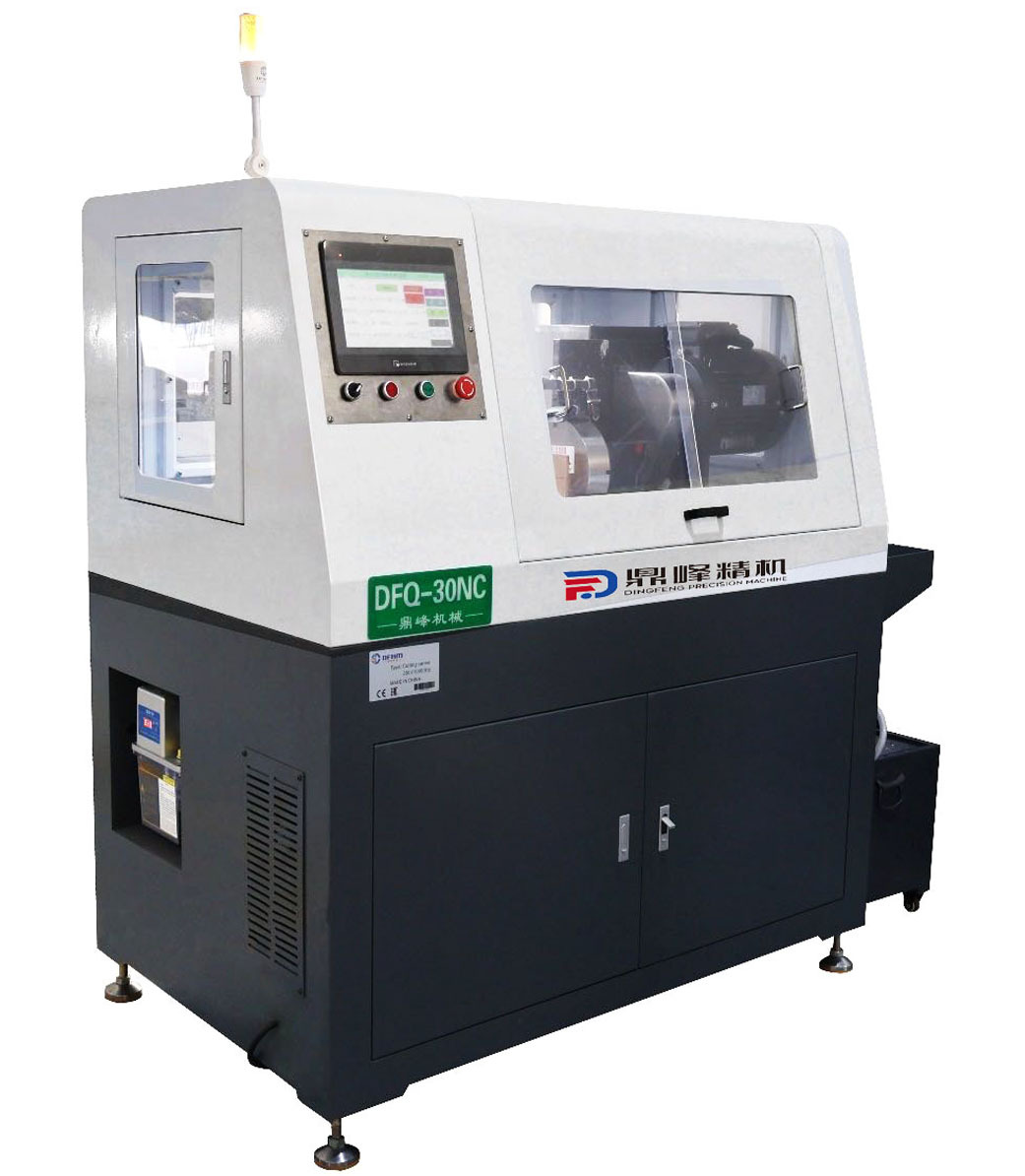

• DFQ-30NC Model:
  Processes 1 rod at a time
  Max Cutting Diameter: Ø32mm
  Processing Range: Ø10–Ø32mm
  Specialized for heavy-duty, large-diameter rod processing

Core Technical Specifications

All models share fundamental engineering excellence while maintaining distinct capabilities:

• Cutting Accuracy: ±0.05mm across all models
• Main Motor: 3.7kW power output
• Spindle Speed: 3800 rpm
• Cutting Wheel: Φ200×Φ25.4×H1.0 (Dingfeng Special)
• Feeding Schedule: 480mm capacity
• Rods Hopper Width: 400mm
• Machine Dimensions: 1650×1500×950mm (L×W×H)
• Weight: 1350kg

Advanced servo motor systems ensure precision Servo Motor: 200W

• Cutting Servo Motor: 750W (DFQ-08NC only)

Patented Technology Highlights

machines incorporate proprietary innovations:

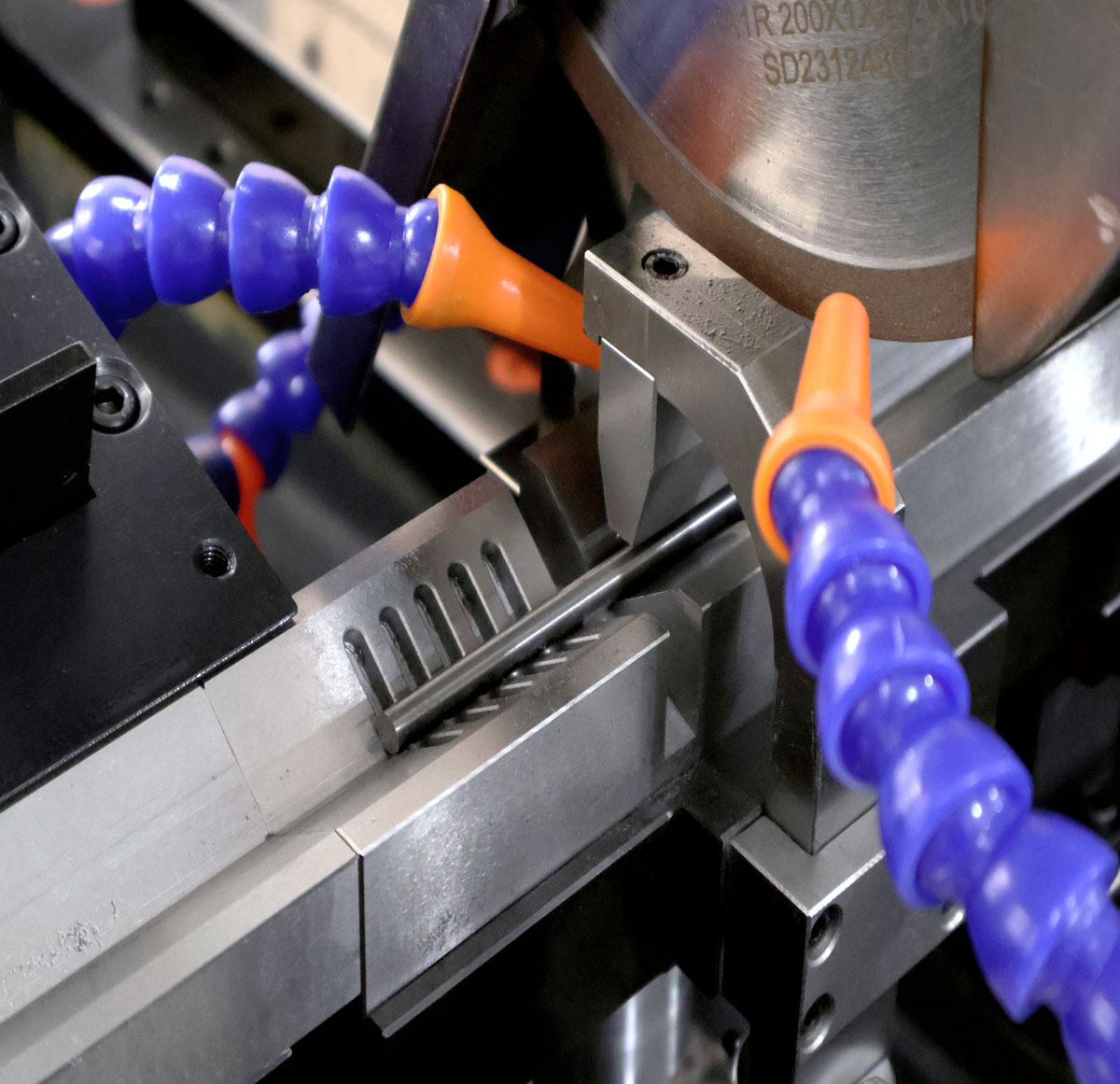

1. Multi-Rod Processing System: Patented fixture technology enables simultaneous processing of multiple rods without compromising precision
2. Adaptive Cutting Mechanism: Specialized diamond cut-off wheels maintain consistent performance through entire carbide hardness spectrum
3. Intelligent Feeding System: Precision servo-controlled feeding ensures accurate positioning for each cutting operation
4. Vibration Dampening: Proprietary frame design minimizes harmonic distortion during high-speed operations

Industry Applications

These precision cutting solutions serve critical functions across multiple sectors:

• Tooling: Perfect for producing drill bits, end mills, and cutting inserts
• Industrial Components: Essential for creating wear-resistant parts and seals
• Automotive Sector: Production of fuel injection nozzles and valve components
• Electronics Industry: Fabrication of micro-tooling and precision contacts
• Mining Equipment: Manufacturing of cutting teeth and wear parts

Operational differentmm hopper capacity enables extended production runs

• Energy Efficiency: Optimized motor systems reduce power consumption
• Minimal Material Waste: Precision cutting maximizes material utilization
• Operator Safety: Fully enclosed cutting area with safety interlocks

• Patent-Protected Technology: Verified innovative design
• Manufacturer Direct Expertise: 15+ years specialized in carbide processing equipment
• Precision Guarantee: ±0.05mm accuracy backed by performance metrics
• Comprehensive Support: Global technical assistance network
• Customizable Solutions: Application-specific configurations available
