Equipment Feature
Product Overview

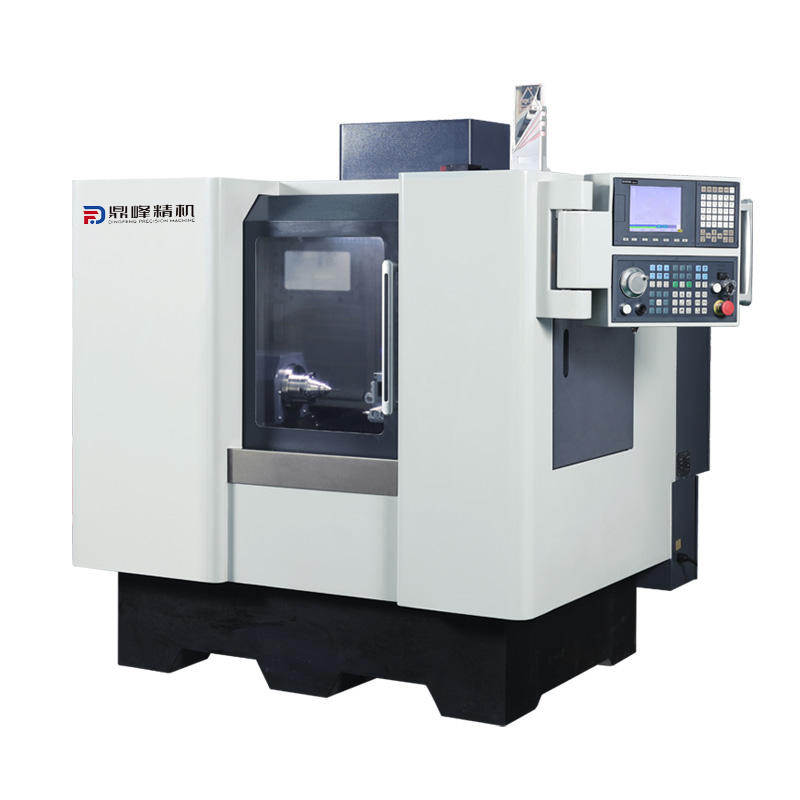

DF-MX20 CNC Carbide Step Cylindrical Grinding Machine is suitable for cylindrical and taper grinding of round bar type workpieces. It is especially suitable for tool manufacturers as well as parts producers to grind the outer circle and excessive taper of tool manufacturing blank segment difference.
List of technical parameters
|
Equipment Name |
Model |
Grinding outer diameter |
|
DF-MX20 CNC Carbide Step Cylindrical Grinding Machine |
DF-MX20 |
Φ20 |
|
Table travel left and right Z-axis |
225 mm |
|
|
Table travel left and right X-axis |
225 mm |
|
|
Rated RPM |
0~ 1000rpm |
|
|
Motor power |
3.5KW |
|
|
Grinding wheel spindle speed |
0~3500rpm |
|
|
Grinding wheel spindle power |
5.5KW |
|
|
Grinding Wheel Specifications |
φ200×φ31.75×10~35 |
|
|
Range of workpiece diameters |
Automatic loading |
3~ 12mm |
|
Manual loading |
3~20mm |
|
|
Workpiece grinding length range |
Automatic loading |
≤100mm |
