Cutting Tools Observe & Measure Microscope: The DF-TP900 Series

Introduction

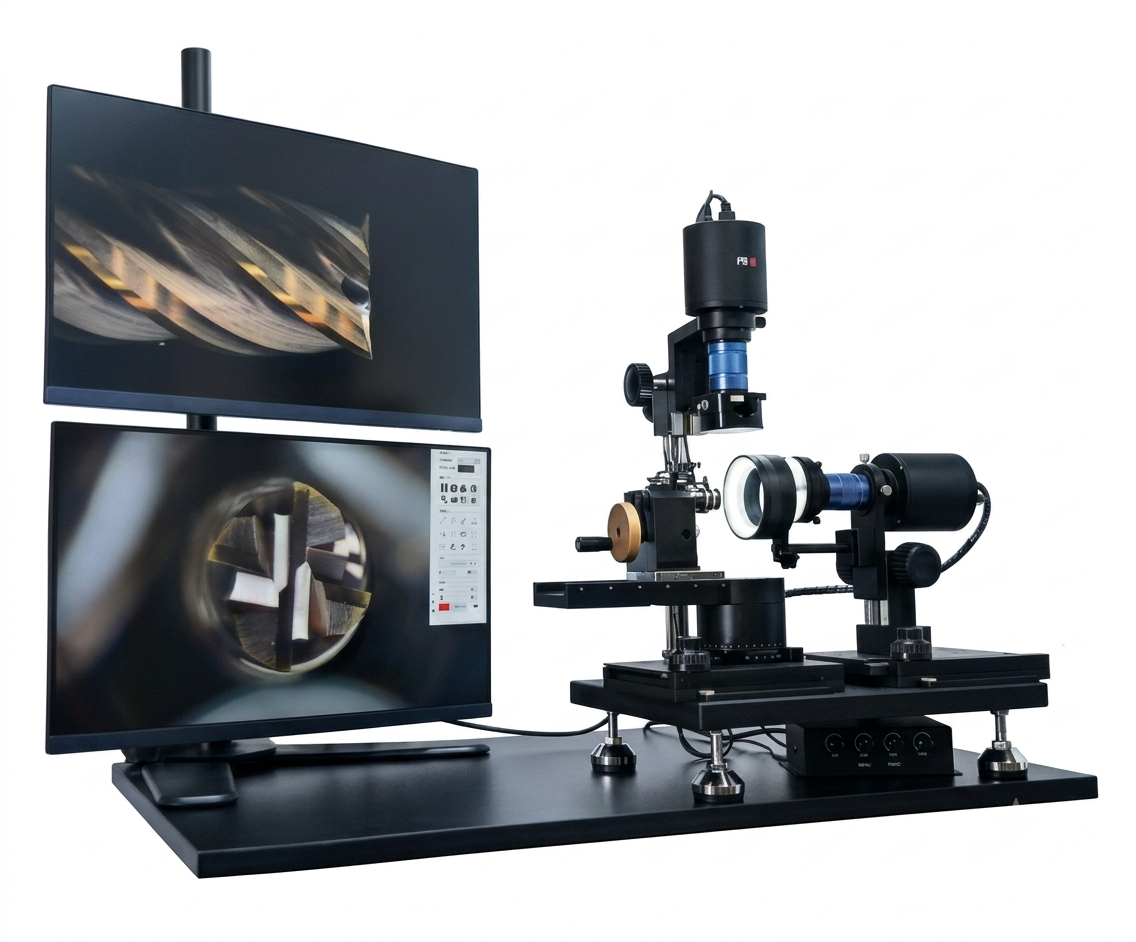

In the precision-driven world of CNC machining and tool manufacturing, the ability to meticulously inspect and measure cutting tools is paramount. Dingfeng Confidential Machinery introduces the DF-TP900 Series—a revolutionary Ultra-HD Tool Appearance Detection System designed to meet the exacting demands of tool users. This integrated microscopic imaging tool detection system eliminates the need for external PCs, offering a seamless, high-performance observation and measurement experience through its advanced built-in technology.

Product Overview

The DF-TP900 is not merely a microscope; it is an all-in-one solution engineered for precision and efficiency. Equipped with intelligent chips and a fully integrated microscopic image processing and measurement software suite, this system delivers unparalleled performance. Key highlights include:

• 4K Ultra-HD Imaging: Experience smooth, high-resolution visuals with rich detail, natural color reproduction, and exceptional clarity. The 3840×2160 resolution at 30 FPS ensures every micron of your tool’s surface is captured flawlessly.
• PC-Free Operation: With powerful onboard processing, the system operates independently—no external computer required-Speed Response**: Leveraging robust chip performance, the DF-TP900 offers instantaneous operational feedback and advanced software functionality, enabling real-time analysis and measurement.

Technical Specifications

Equipment Model: DF-TP900

Core Functions:

• High-definition zoom observation of tool surfaces.
• Precise 2D dimensional measurement.

Key Parameters:

• Tool Clamping Range: 1–30 mm
• Lens Configuration:
• Dual 8MP.6x Super Depth-of-Field Zoom Lenses.
• Dual 0.5x Eyepieces.
• Triple DF Adjustable Light Sources (coaxial, ring, and surface illumination).
• Connection Method: HDMI (pure digital signal for direct monitor connection).
• Mechanical Axes:
• Fixture Axis: X-30mm, Y-30mm, A-360° swivel, C-270° swivel.
• Vertical Lens Axis Lens Axis: X-30mm, Y-30mm, Z-15mm.
• Magnification: 27–210x (on a 27-inch display).
• Input Voltage: 220V.
• ** @ 30 FPS (color or B/W).

Standard Configurations:

• Display Stand × 1
• Wireless Mouse × 2
• Mouse Pad × 1
• Marble Platform (300×400×50 mm)

Packaging & Shipping:

• Package Size: 640×400×450 mm
• Machine Weight: 60 kg

Why Choose the DF-TP900?

Unmatched Integration and Performance

Traditional tool inspection systems often rely on external PCs and fragmented software, leading to compatibility issues and workflow interruptions. The DF-TP900’s fully integrated design consolidates imaging, processing, and measurement into a single robust unit. This ensuresistency**: Eliminates variables associated with third-party hardware/software.

• Efficiency: Reduces setup time and operational complexity.
• Precision: Delivers repeatable, accurate measurements with minimal user intervention.

Advanced Optical Engineering

The system’s dual-camera setup coupled with super depth-of-field zoom lenses provides exceptional flexibility. Whether inspecting tool edges, coatings, or wear patterns, the DF-TP900 captures intricate details with striking clarity. The adjustable lighting system further enhances contrast and reduces glare, critical for identifying micro-defects.

Ergonomic and Versatile Design

The 8-axis co-movement mechanism allows multi-directional positioninging the workpiece. This is particularly advantageous for:

• End mills, drills, and inserts.
• Tool reconditioning and quality control.
• R&D and failure analysis.

About Dingfeng Confidential Machinery

With over a decade of expertise in CNC tool pre-processing equipment and milling cutters, Dingfeng stands as a trusted partner in the carbide industry. Our commitment extends beyond hardware—we offer:

• One-Stop Procurement: Comprehensive range of tools, equipment, and custom solutions.
• Customization: OEM services tailored to specific operational needs.
• Quality Assurance: Competitive pricing paired with rigorous quality control.
• Global Logistics: Flexible shipping options (express, air, sea) to worldwide destinations.

Frequently Asked Questions (FAQ)

1. Are you a manufacturer?
   Yes, we are a professional manufacturer with 10+ years of experience in carbide tool pre-processing equipment and milling cutters. We provide both standard and customized solutions.

2. Why choose Dingfeng?
   We combine mature technology, competitive pricing, extensive inventory, and a one-stop procurement value and reliability.

3. What is the delivery time?

• Equipment Series: 30 days after advance payment.
• Finished Milling Cutters: 2–5 days (standard); 10–20 days (customized).

1. Can I request samples?
   Yes, sample requests are welcome. Small trial orders or complimentary samples (1–2 pieces, freight paid by customer) are available upon price confirmation.

2. What payment terms do you offer?
   T/T: 30% deposit, 70% balance before shipment. Product and packaging images are provided pre-shipment.

Take the Next Step

Elevate your tool inspection process with the DF-TP900—a fusion of cutting-edge imaging, intelligent design, and unmatched precision. Contact Dingfeng today to discuss your requirements, request a an order.

No gimmicks—just sincerity, expertise, and solutions that work.
